【空調軟管】中央空調風機軟連接

服務內容：【空調軟管】中央空調風機軟連接

簡介：【空調軟管】中央空調風機軟連接“讓每個房間都安靜下來” "Air conditioning hose] the soft connection of the central air conditioner fan" let each room be quiet. " 上海淞江減震器集團有限公司官方網......

【空調軟管】中央空調風機軟連接“讓每個房間都安靜下來”
"Air conditioning hose] the soft connection of the central air conditioner fan" let each room be quiet. "

上海淞江減震器集團有限公司官方網站為您介紹：【空調軟管】中央空調風機軟連接“讓每個房間都安靜下來”信息，淞江集團為眾多星級酒店、大學、醫院、機場等高端場所配套空調軟管，讓每一個風機都隔離震動、降低噪音，給大家一個安靜、舒適的環境。
Shanghai Songjiang absorber group limited official website for your introduction: [] of the central air conditioning air conditioning hose soft connection "let each room quiet" information, Songjiang group for many star hotels, universities, hospitals, airports and other high-end places supporting air conditioning hose, make every fan vibration isolation, to reduce noise, give you a quiet and comfortable environment.

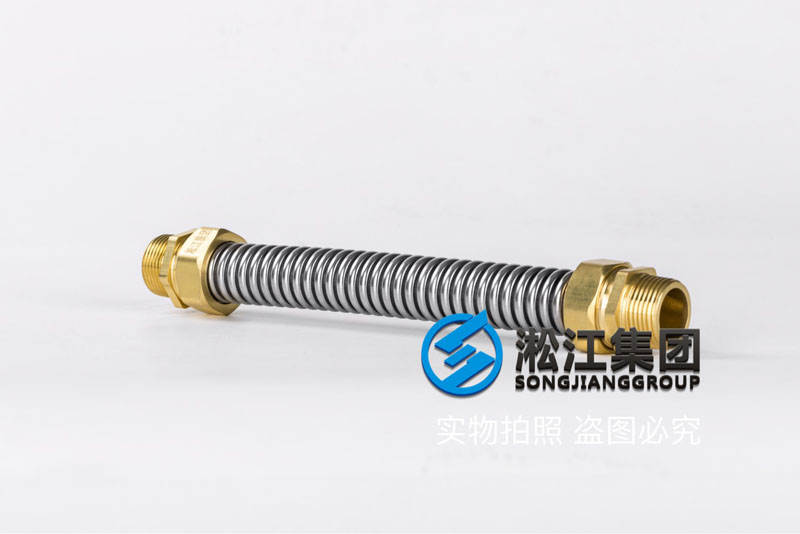

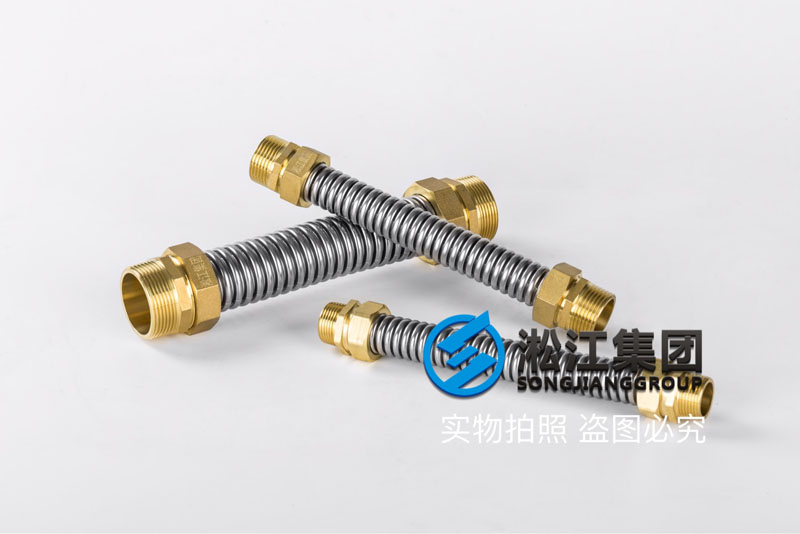

一、中央空調風機軟連接實物拍照：

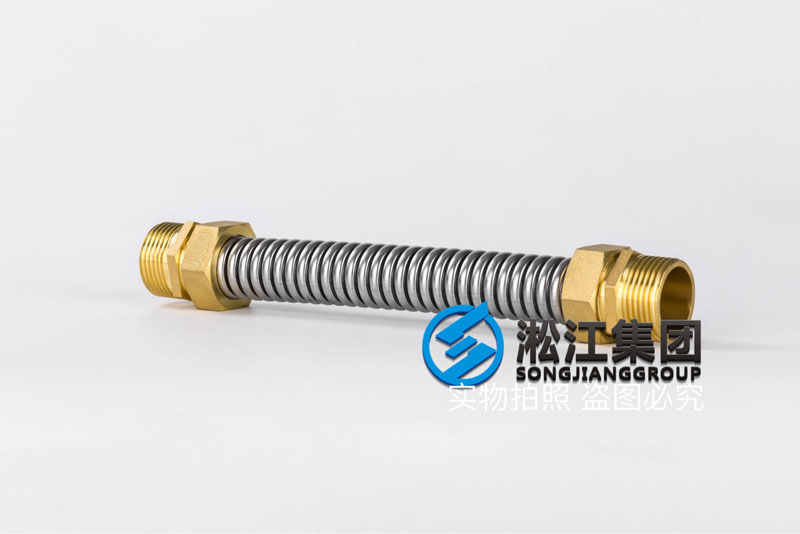

DN20

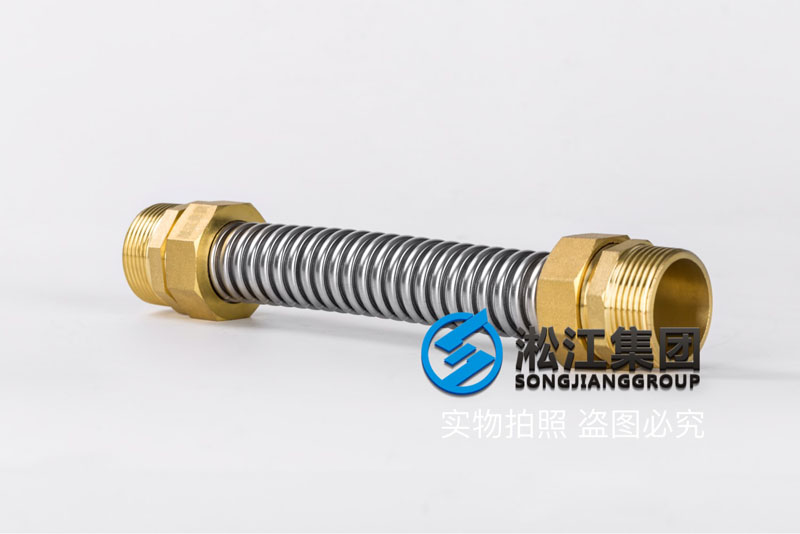

DN25

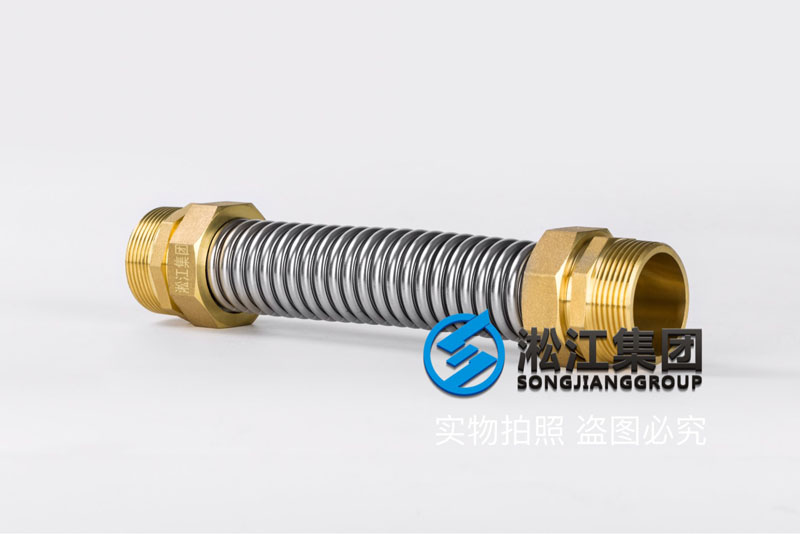

DN32

DN40

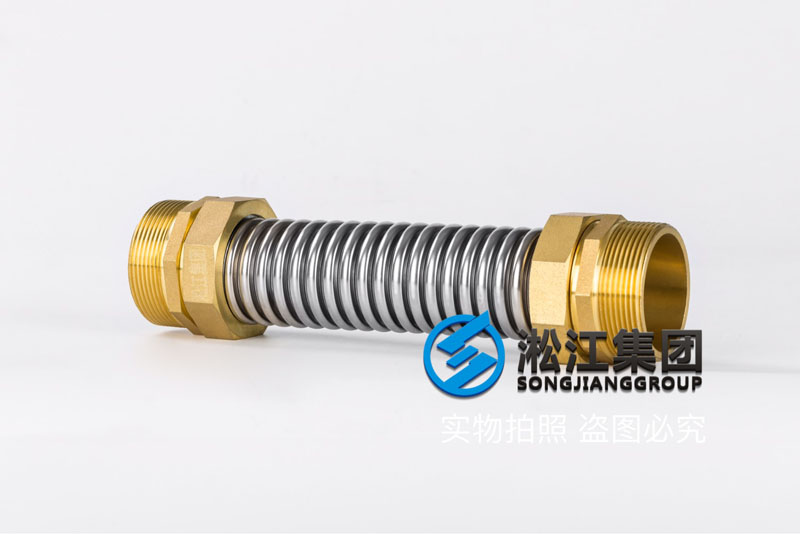

DN50

二、中央空調風機軟連接介紹：

1、產品名稱：空調軟管

2、產品圖片：見上圖

3、產品結構：內螺紋接頭+外絲

4、產品特點：無需焊接，可按需要長度自行裝配

5、產品通徑：DN20~DN50

6、制作長度：100mm~1000mm（標準長度為250mm）

7、產品材料：

①六角接頭：銅/不銹鋼

②六角螺母：銅/不銹鋼

③密封墊圈：硅橡膠/優質橡膠

④波紋波管：SUS304

8、適用于：風機盤管

9、優點：安裝簡單方法，成本低

10、介質要求：請在管道進水口加裝有效去除氯離子裝置（氯離子含量不超過25mg/L），避免水氯離子含量超標，產生針孔腐蝕；

11、橡膠接頭是用在設備進出口的，可以補償軸向和橫向位移，減震效果是最好的。并且不受管道內部介質的腐蝕。

1. Product Name: air conditioning hose

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN20~DN50

6. production length: 100mm~1000mm (standard length is 250mm)

7. product materials:

Six angle joint: copper / stainless steel

Six angle nut: copper / stainless steel

(3) sealing washer: silicone rubber / high quality rubber

Corrugated tube: SUS304

一般中央空調風機盤管都會安裝軟連接，在進水口和回水口處都會安裝上軟連接、過濾器、閥門這3個部件。
這個軟連接一般分為2大類：
1、金屬軟連接（全不銹鋼金屬軟管、銅頭波紋軟管）
2、橡膠軟連接（螺紋絲扣橡膠接頭）
空調系統里的水在不停的循環，導致管道產生震動和噪音，為了更好的滿足每個風機盤管的安靜，在每個風機盤管的進口和出口安裝上軟連接，可以大大降低震動和噪音，另外在風機盤管的上方安裝4個吊式風機彈簧減震器，這樣可以將風機盤管完全與樓層和管道系統隔離，從而達到風機震動，樓層和管道不震動的效果。

General central air-conditioning fan coil will install soft connection, the inlet and outlet water will be installed on the valve, filter, connecting the 3 parts.

This soft connection is generally divided into 2 major categories:

1, metal soft connection (all stainless steel metal hose, copper head corrugated hose)

2, soft rubber connection (threaded connection soft rubber)

The water in the air conditioning system in continuous circulation, resulting in pipeline vibration and noise generated, in order to better meet the needs of each fan coil in the quiet, each fan coil inlet and outlet installation soft connection, can greatly reduce the vibration and noise, and at the top of the fan coil installed 4 hanging type spring shock absorber so, can be completely with the floor and the fan coil pipe system isolation, so as to achieve the fan vibration, and vibration effect of floor pipeline.

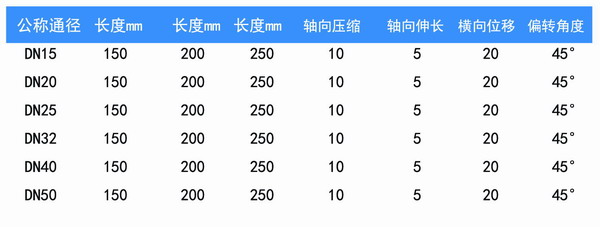

三、中央空調風機軟連接參數介紹：
